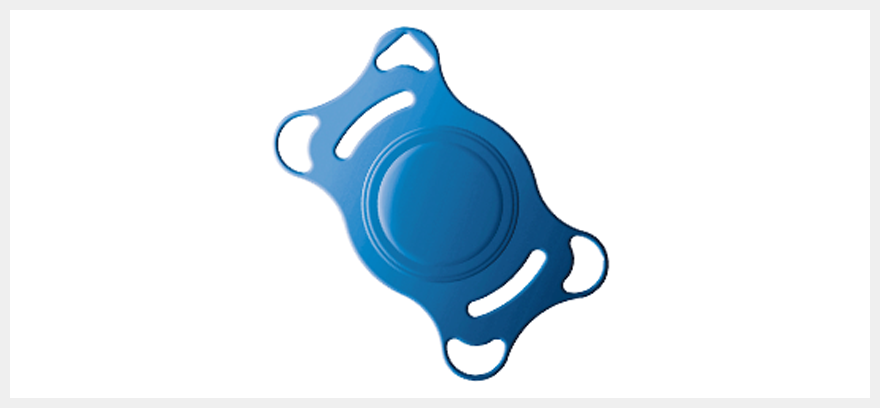

Galaxy Fold Ultrasmart is a single piece hydrophilic acrylic lens manufactured from ultrapure 26% hydrophilic material with excellent biocompatibility and low inflammatory response. The material is free of microvacuoles and glistenings. Handling charecteristics and unfolding are optimal for placement inside the capsular bag.

| Model Name: | Ultrasmart |
| Power Range: | -10.0 O to +50.0 D(In Steps of 0.50 D) |
| Delivery System Type: | Single Use Disposable IOL injector system |
| Aspheric Monofocal IOL | ||
|---|---|---|
| Material | : | Single piece hydrophilic acrylic |
| Water Content | : | 26% in equilibrium |
| UV Protection | : | Yes |
| UV Light Transmission | : | UV 10% cut-off is 380 nm |
| Refractive Index | : | 1.460 |
| Overall Length | : | 11.00 mm |
| Optic Diameter | : | 6.10 mm |
| Optic Shape | : | Equi-Biconvex |
| Asphericity | : | Anterior aspheric surface with negative aspheric design |
| Optic Edge Design | : | 360° square edge |
| Haptic Angulation | : | 0° |
| Haptic Style | : | 4 haptics |
| Estimated Constants for Optical Biometry | |||||
|---|---|---|---|---|---|
| SRK/T | Haigis | HofferQ | Holladay | ||
| A-constant | a0 | a1 | a2 | pACD | SF |
| 118.6 | 1.323 | 0.578 | 0.20 | 5.39 | 1.63 |
For Contact Ultrasound, the estimated A-constant is 118.0
Please note that the constants indicated for all lenses are estimates and are for guidance purposes only.
